Optical motion tracking: calibration steps for tomorrow's scans

At conventional clinical resolution, that movement may appear as a familiar blur or ghosting pattern; at 7T, where researchers may pursue isotropic voxels measured in hundreds or even tens of micrometers, the same displacement can alter cortical boundaries, distort functional maps, and weaken the longitudinal trajectory that a study is trying to measure.

This is the central diagnostic dilemma in optical motion tracking MRI calibration: the camera may track the head with impressive precision, yet that precision has no clinical meaning until the camera coordinate system is correctly related to the scanner coordinate system. Tracking is not the same as knowing where the head is in the imaging frame. Calibration is the bridge between those two statements.

For prospective motion correction, the bridge must support more than a post-acquisition estimate. The measured change in head position has to be translated into scanner actions: gradient updates, radiofrequency frequency adjustments, and readout phase corrections that occur while the sequence is running. A small error in that transformation can become a systematic imaging error, even when the optical tracker itself reports sub-millimeter translation and less than one degree of rotational precision.

The calibration problem begins with two coordinate systems

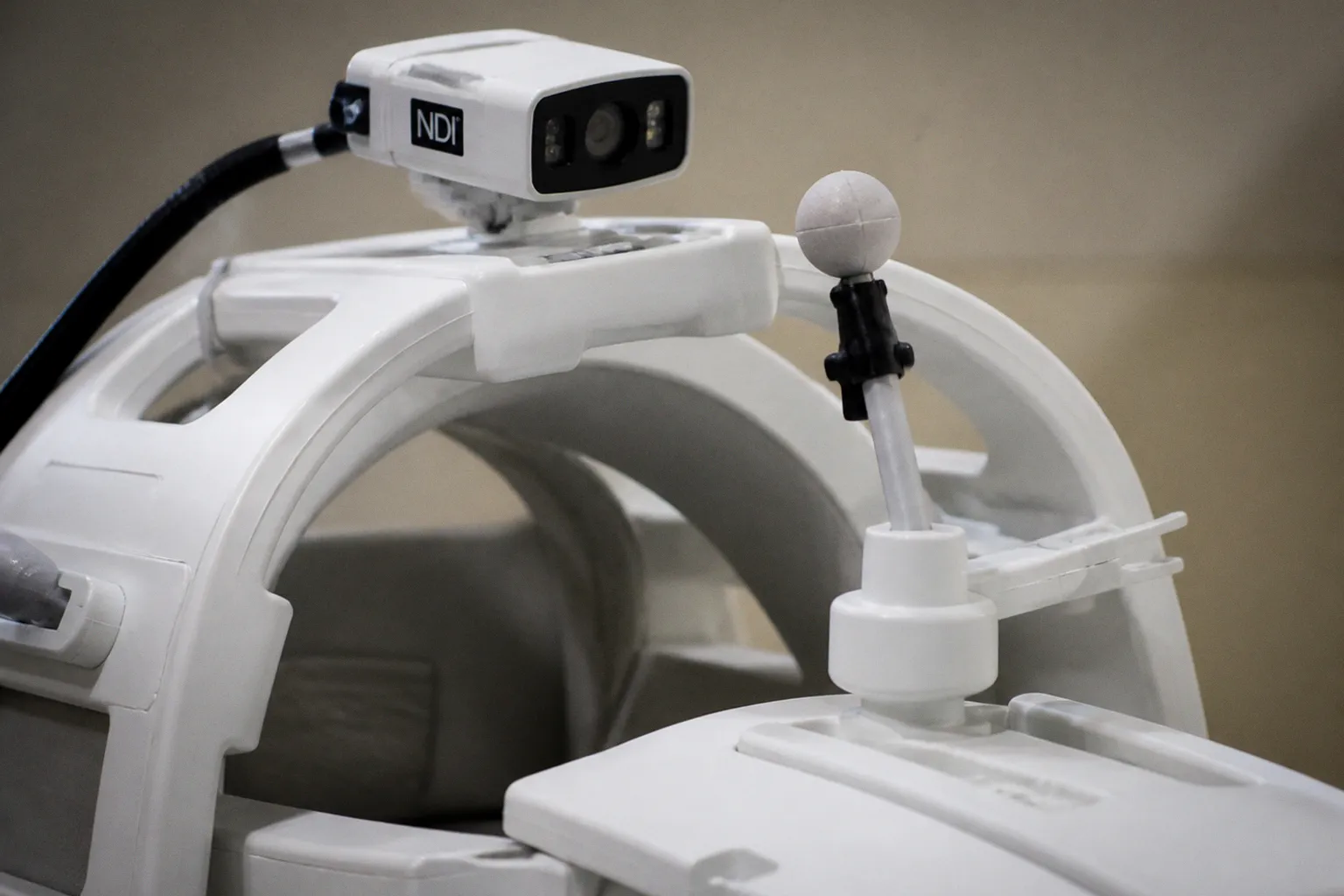

Optical motion tracking systems typically use an MR-compatible camera—often based on CMOS or CCD sensors—and an optical target attached to the participant’s head. The system estimates six degrees of freedom: three translations and three rotations. Translation describes movement along the scanner’s left–right, anterior–posterior, and superior–inferior axes; rotation describes how the head turns around those axes.

The camera, however, does not naturally speak the language of the MRI scanner.

It sees a target in image coordinates, expressed in pixels. The tracking software reconstructs the target’s pose in the camera’s reference frame. The MRI system defines position relative to the bore, gradient coordinate system, isocenter, and, in many implementations, the geometry of the head coil. These frames may be stable individually while remaining misaligned with one another.

A calibration pipeline therefore has to answer three separate questions:

1. How does the camera map a three-dimensional point onto its two-dimensional sensor?

2. Where is the camera located and oriented relative to the scanner and head coil?

3. How should a detected head movement be converted into an update to the MRI acquisition?

The first question is intrinsic camera calibration. The second is extrinsic spatial calibration. The third is cross-calibration or system-level calibration, and it is the step that determines whether optical motion tracking can participate in prospective correction rather than simply producing a motion trace for later analysis.

Optical tracking becomes MRI correction only after the camera’s measurement has been translated into the scanner’s own coordinate frame.

This distinction is easy to lose in a technology demonstration, because the visual output of a tracker can look convincing: a head model moves on the screen, the six motion parameters change smoothly, and the reported precision may be well below a voxel dimension. But a visually plausible trajectory is not sufficient evidence that the scanner is receiving the correct spatial instruction.

Intrinsic camera calibration: teaching the camera how to see

The intrinsic stage characterizes the camera itself. It does not yet determine where the camera sits inside the scanner room. Instead, it estimates the optical properties that govern how a point in space is projected onto the sensor.

The usual parameters include focal length, principal point, and lens distortion. Focal length determines the relationship between the camera’s optical geometry and the apparent size of an object in the image. The principal point describes the optical center of the projection on the sensor. Lens distortion accounts for the fact that real lenses do not behave as perfect pinhole cameras, particularly toward the edges of the field of view.

In practice, calibration commonly uses a planar target with a known pattern, such as a chessboard. The target is presented to the camera in multiple orientations and positions. Because the geometry of the pattern is known, the system can estimate the camera parameters that best explain the observed image points.

This process is familiar from computer vision, but the MRI environment adds constraints that matter. The camera may be mounted in-bore, positioned near the head coil, or integrated into a setup where the available viewing angle is limited. The target may be seen obliquely, partially occluded, or illuminated under infrared light rather than ordinary room lighting. Some systems use infrared illumination around 850 nm or 950 nm, so the calibration target and camera response must be appropriate for that optical path.

The purpose of intrinsic calibration is not to make the image look visually correct. It is to prevent systematic geometric error from entering the pose estimate. If radial distortion is left unmodeled, a target near the edge of the image may appear to shift in a way that the tracking algorithm interprets as physical movement. If the focal length is poorly estimated, the reconstructed distance and orientation of the target can drift as the subject changes position.

A practical intrinsic calibration sequence

A robust setup usually follows a sequence similar to this:

1. Secure the camera in its intended mechanical position.

If the camera is calibrated on a bench and later moved into the bore, the intrinsic parameters may remain useful, but the complete system geometry has not been preserved. Focus, lens seating, and optical alignment should match the scanning configuration.

2. Present a planar calibration pattern across the usable field of view.

The pattern should occupy different regions of the image, not only the center. This allows the model to estimate distortion where the head target may actually appear during scanning.

3. Acquire multiple orientations and distances.

A single frontal view does not sufficiently constrain the relationship between the camera and the pattern. Tilting and repositioning the target provides the variation needed to estimate the projection model.

4. Estimate focal length, principal point, and lens distortion.

The calibration algorithm compares known pattern geometry with detected image points and minimizes the reprojection error.

5. Inspect residuals rather than accepting a single summary number.

A low average error can hide a structured problem at the image periphery or in one orientation. The residual pattern matters because a spatially consistent error can become a spatially consistent motion artifact.

The historical foundation of this work reaches back to the Tsai camera calibration model introduced in 1987, while Zhang’s 2000 method became a widely used benchmark for calibration from multiple views of a planar pattern. The underlying mathematics is mature. The harder question in MRI is not whether a camera can be calibrated in isolation, but whether its calibration remains meaningful once the camera, bore, head coil, optical target, and sequence control system operate together.

Extrinsic alignment: placing the camera inside the MRI geometry

Intrinsic calibration tells the system how the camera forms an image. Extrinsic calibration determines the camera’s position and orientation relative to a reference object or coordinate frame.

For optical motion tracking MRI calibration, that reference may be defined by the scanner bore, a head coil, a dedicated phantom, or a fiducial arrangement whose position is known in scanner coordinates. The calibration has to establish the rigid transformation between the optical reference frame and the MRI frame. In simplified terms, it identifies the rotation and translation that allow a point measured by the camera to be expressed in scanner coordinates.

This is where the physical mounting geometry becomes clinically important. A camera attached to the head coil does not have the same transformation as a camera mounted above the bore. Even a small change in bracket position, tilt, or distance can alter the relationship between the optical frame and the gradient frame. The calibration is therefore not a one-time factory setting. It belongs to the specific scanner, camera mount, head coil configuration, and acquisition arrangement being used.

A phantom or fiducial pattern provides a controlled object whose geometry can be observed optically and related to the MRI coordinate system. Depending on the implementation, the system may use known points, markers, or a phantom that can be localized in the scanner. The objective is to derive the transformation that best aligns the two measurements.

What extrinsic calibration must establish

The alignment should resolve at least the following relationships:

• The origin of the optical tracking reference frame relative to the scanner’s coordinate system.
• The orientation of the camera axes relative to the gradient axes.
• The location of the imaging isocenter relative to the tracked head or calibration phantom.
• The rigid relationship between the optical target and the subject’s head.
• The geometry of the target as seen by the camera, including any offset between the target and the anatomical region of interest.

The final point is often underestimated. The camera does not directly observe the brain. It observes a marker or facial geometry that is assumed to move rigidly with the head. If the optical target is mounted loosely, shifts relative to the skull, or changes orientation on the support, the tracking system may produce a highly precise estimate of the wrong object.

Marker-based systems commonly use moiré-pattern or checkerboard targets attached to the participant. Their advantages are clear: the geometry is known, the target can be detected quickly, and the pose estimate can be tied to a stable pattern. Their disadvantages are equally practical. The target must be positioned consistently, the attachment must be secure, and setup time becomes part of the workflow.

Markerless systems attempt to remove that physical target by using structured light, natural facial features, or deep-learning models. This can make the procedure less intrusive and reduce preparation, but it does not remove the calibration problem. A markerless tracker still needs to know how its estimated pose relates to the scanner frame, and it must be robust to facial expression, partial occlusion, changes in illumination, and the limited visual access available in the bore.

Cross-calibration connects motion estimates to scanner updates

The most consequential stage is cross-calibration: translating the optical system’s reference frame into the coordinate system used by the MRI acquisition.

Suppose the camera detects a small rotation of the head. That estimate is initially expressed according to the camera’s own axes. The MRI sequence, however, needs to know what that rotation means relative to the gradients and the selected field of view. A rotation that appears simple in the optical frame may correspond to a different combination of scanner-axis rotations. The cross-calibration transformation provides that translation.

For prospective motion correction, the pipeline must operate with sufficient speed and predictable latency. Optical systems may sample at approximately 30 frames per second or up to 60 Hz, depending on the hardware and implementation. Each new pose estimate is filtered or otherwise processed, transformed into scanner coordinates, and used to update acquisition parameters. Those updates may involve gradient orientation, RF frequency, and readout phase.

The timing relationship matters as much as the spatial relationship. If the camera reports a pose after the head has already moved, the correction system must account for latency between optical exposure, image processing, communication, and scanner response. A perfectly estimated position that arrives too late can still leave residual motion artifacts. In a high-resolution sequence, the relevant issue is not simply whether the head moved, but whether the scanner’s sampling trajectory remained consistent with the anatomy during that movement.

This is why cross-calibration should be treated as a protocol rather than a button. A protocol defines what is calibrated, when it is calibrated, which physical components must remain fixed, and how the result is validated before a scan begins.

A useful cross-calibration workflow

A practical prospective motion correction setup can be organized into several linked stages:

1. Lock the hardware geometry.

Install the camera, head coil, optical target support, and any infrared illumination in their intended scanning positions. Do not establish the transformation before the final mounting geometry is in place.

2. Define the scanner reference.

Establish the relationship between the calibration phantom or fiducial geometry and the scanner coordinate frame, including the relevant isocenter and orientation conventions.

3. Observe the same geometry optically.

Detect the phantom or fiducials with the tracking camera and estimate their pose in the optical frame.

4. Solve the rigid transformation.

Compute the rotation and translation that map optical coordinates into scanner coordinates. The transformation should be evaluated across multiple known poses rather than inferred from a single alignment.

5. Relate the target to the subject’s head.

Confirm that the target-to-head relationship is rigid and reproducible. If the target is replaced, repositioned, or attached through a different support, the relevant geometry may need to be re-established.

6. Verify the motion sign and axis conventions.

A correction system must distinguish, for example, a positive rotation around one scanner axis from a positive rotation around another. Axis inversion or handedness errors can turn a correction into an amplification of the artifact.

7. Test the correction path before data collection.

The system should demonstrate that a known physical displacement produces the expected scanner-frame update, with the anticipated direction, magnitude, and timing.

8. Record the calibration state with the scan.

Longitudinal imaging depends on reproducibility. The calibration configuration, camera mount, head coil, target type, and software version should be part of the acquisition record.

The unknowns are often operational rather than mathematical. There is no universal industry-wide calibration phantom design that applies across all scanner vendors and optical tracking implementations, and exact cross-calibration setup times vary with the hardware arrangement. A laboratory that treats calibration as an undocumented five-minute ritual may find it difficult to explain why one subject’s data are comparable to another’s, even when the same sequence name appears in the protocol.

The calibration state is part of the acquisition, not a prelude that disappears once the scan button is pressed.

Prospective and retrospective correction solve different parts of the problem

Optical tracking can support prospective correction, retrospective correction, or both, but those approaches should not be conflated.

In prospective correction, the system uses the measured head pose during the scan to modify the acquisition in real time. The goal is to keep the imaging volume and sampling geometry aligned with the moving anatomy. This can reduce the amount of motion-induced inconsistency entering the raw data.

Retrospective correction occurs after acquisition. The recorded motion trajectory can be used to realign images, regress motion-related effects, or inform reconstruction and quality control. Retrospective methods remain valuable because no prospective system eliminates every source of artifact, and because some sequences retain motion sensitivity even when the field of view is updated.

Internal navigator sequences may still be used in particular clinical protocols. Optical motion tracking does not universally replace them. Instead, the optical system offers an external, non-contact measurement pathway that may complement navigators, especially when the study requires rapid or continuous head-pose estimation and when sequence-specific navigator overhead would be undesirable.

The most appropriate architecture depends on the acquisition. A structural scan with a long readout, a diffusion sequence sensitive to gradient direction, a functional series requiring stable temporal correspondence, and a spectroscopy protocol do not expose the same failure modes. Motion correction may preserve one aspect of data quality while leaving another vulnerable.

Consider the implications for longitudinal neuroimaging. If a participant’s head moves differently across repeated sessions, a registration algorithm may correct the final images sufficiently for visual inspection while subtle degradation remains in cortical thickness, diffusion metrics, or functional connectivity. Better motion tracking does not automatically make those measures biologically valid, but it can reduce one important source of uncertainty in the trajectory.

Resolution changes the meaning of calibration error

The acceptable calibration error is inseparable from the spatial scale of the study.

At standard clinical resolution, a small geometric mismatch may be tolerable in a way that it is not for ultra-high-field research. Studies at 7T have demonstrated prospective motion correction at isotropic resolutions as fine as 140 µm. At that scale, a sub-millimeter translation is several voxels, and a small rotation can create substantial displacement at the edge of the brain even when the rotational value appears modest.

A simple geometric principle explains why rotations deserve particular attention: the linear displacement caused by a rotation increases with distance from the center of rotation. A one-degree change near the center of the head is not equivalent to the same rotation at the cortical surface or at the far edge of a high-resolution volume. The tracking system therefore needs not only accurate angular estimates but also a correct model of the point around which those rotations are interpreted.

This has consequences for quality assurance:

• A calibration that is adequate for a 1 mm anatomical sequence may not be adequate for sub-millimeter cortical mapping.
• Translation and rotation should be evaluated separately because their effects depend on the anatomy and field of view.
• A low average tracking error does not guarantee low error at the boundaries of the reconstructed volume.
• The temporal stability of the transformation matters during a long scan, especially if the camera mount or head coil can flex.
• Validation should include known translations and rotations that span the expected range of subject movement.

The practical target often cited for high-resolution optical tracking is below 1 mm translation and below 1° rotation. Those figures describe tracking precision, not necessarily final image accuracy. The complete error budget also includes camera calibration, target detection, target-to-head stability, cross-calibration, system latency, gradient response, and sequence implementation.

That distinction is clinically important. A tracker can meet its nominal precision specification while the complete prospective motion correction chain produces a larger residual error. Conversely, a system with a slightly less impressive isolated camera metric may perform well if its coordinate transformation and timing are better characterized.

Preventing MRI motion artifacts begins before the participant enters the sequence

Calibration is often discussed as an engineering task, but the scan environment determines whether the mathematics survives contact with clinical reality.

The optical target must be positioned so that it remains visible throughout the intended head movement range. The head coil should not occlude the target or change its apparent geometry during table movement. Infrared illumination must be compatible with the camera and should not create unstable reflections from the coil, skin, or surrounding surfaces. The system must also remain compatible with MRI safety requirements, including the use of MR-compatible cameras, mounts, cables, and illumination components.

The participant’s positioning strategy matters as well. Padding and comfortable head stabilization can reduce motion, but excessive restraint may introduce discomfort and does not substitute for tracking. A system designed to correct movement should not encourage a workflow in which the participant is positioned differently from session to session, because changes in head support can alter the target-to-head relationship and compromise longitudinal comparability.

Before scanning, the operator should be able to answer a small set of concrete questions:

• Is the camera mounted in the same geometry used during cross-calibration?
• Is the optical target rigidly attached and fully visible?
• Has the scanner coordinate convention been confirmed for the current sequence?
• Is the tracking frame rate stable?
• Is the measured latency known or at least characterized?
• Does the correction system respond in the expected direction to a controlled movement?
• Are the calibration parameters associated with this specific head coil and scanner configuration?
• Is there a fallback quality-control pathway if optical tracking is interrupted?

These are not generic administrative checks. Each one corresponds to a possible failure mode that can masquerade as biological variation. A shifted camera can look like altered motion. A loose marker can look like head rotation. An axis convention error can create apparent overcorrection. Intermittent optical visibility can produce gaps in the trajectory that a downstream algorithm treats as genuine stability.

Marker-based systems remain practical; markerless systems change the workflow

Marker-based optical tracking has an appealing relationship between physical setup and mathematical certainty. The marker’s geometry is known, its contrast can be engineered, and its pose can be estimated from a repeatable pattern. For research protocols that prioritize high-resolution reproducibility, these advantages may outweigh the additional preparation time.

Markerless tracking offers a different balance. Structured light or deep-learning models can estimate head pose without attaching a dedicated target, reducing setup burden and potentially improving acceptability in clinical environments. This shift allows the system to fit more naturally into routine scanning, particularly where preparation time and repeated target placement are significant constraints.

But markerless does not mean calibration-free. The camera still requires intrinsic characterization. The camera-to-scanner transformation still has to be established. The algorithm must still define what anatomical surface or facial representation is being tracked and how that representation maps to the rigid motion of the skull.

Deep-learning systems introduce additional considerations. Their performance may depend on the range of head shapes, illumination conditions, occlusions, and poses represented during development and validation. A model may estimate smooth motion under ordinary conditions while becoming less reliable when the face is partially covered, the subject is positioned deeply in the bore, or the optical signal is affected by hardware. Smoothness should not be mistaken for correctness.

The choice should follow the study’s endpoint. If the primary outcome depends on subtle longitudinal changes, a slightly longer but tightly controlled marker-based preparation may be preferable. If the clinical environment cannot support repeated marker placement, a markerless system may be more realistic, provided its performance is characterized for the scanner, coil, bore geometry, and participant population in question.

Quality assurance should follow the biological question

A calibration procedure is successful only if it protects the measurement that the study intends to interpret.

For a structural neuroimaging study, that may mean preserving the boundaries of small cortical structures and maintaining consistent spatial correspondence across sessions. For diffusion MRI, it may mean reducing motion-related inconsistency that could contaminate directional measures. For functional imaging, it may mean maintaining temporal and spatial fidelity so that changes in signal are not confused with changes in head position. For spectroscopy, the relevant concern may include the stability of voxel placement and frequency-related effects during movement.

The same optical tracking system can therefore require different validation emphasis across protocols. A laboratory should define acceptable residual motion and calibration performance in relation to the sequence, voxel size, reconstruction method, and endpoint—not simply according to the camera’s headline specification.

A useful validation dataset includes:

1. Static recordings, to quantify apparent motion when the phantom or subject remains still.

2. Known translations, to evaluate scale and axis direction.

3. Known rotations, to test angular accuracy and the relationship between rotation and peripheral displacement.

4. Repeated repositioning, to assess whether the calibration survives normal setup variation.

5. Sequence-specific acquisitions, because the same motion trajectory can affect different readouts in different ways.

6. Longitudinal repeatability checks, to determine whether calibration drift could resemble biological change.

The final stage is interpretive. Motion estimates should be stored alongside the imaging data, and quality control should preserve enough information to distinguish true subject movement from tracking loss, marker instability, or scanner communication failure. This is particularly important in studies of aging, neurodegeneration, and cognitive reserve, where subtle degradation is often the signal of interest and where technical inconsistency can quietly reshape the apparent trajectory.

The next scan should inherit a calibration discipline, not just a calibration file

Optical motion tracking MRI calibration is sometimes presented as a narrow computer-vision problem: estimate the camera parameters, align the frames, and send the pose to the scanner. In clinical research, the task is broader. It is a chain of physical assumptions connecting an optical measurement to a biological conclusion.

The camera must understand its own lens. The tracking system must understand where it sits in the bore. The scanner must receive the subject’s movement in the correct gradient coordinates, with the correct timing and sign conventions. The target must remain rigidly related to the head. The sequence must respond in a way that matches the correction model. And the resulting data must be evaluated at the spatial and temporal scale of the scientific question.

This shift allows motion correction to become more than an artifact-reduction feature. It becomes part of acquisition design, with its own calibration state, validation record, and longitudinal quality requirements. It also places a useful limit on enthusiasm: optical tracking can improve the fidelity of an MRI measurement, but it cannot turn a single biomarker into a diagnosis or compensate for every weakness in sequence design.

The most durable systems will be those that make calibration visible rather than invisible—documented, repeatable, and connected to the anatomy and outcomes that matter. Tomorrow’s scan will not be improved merely because a camera is present in the bore. It will be improved when the camera, the gradients, the pulse sequence, and the biological question have been brought into the same coordinate frame.
